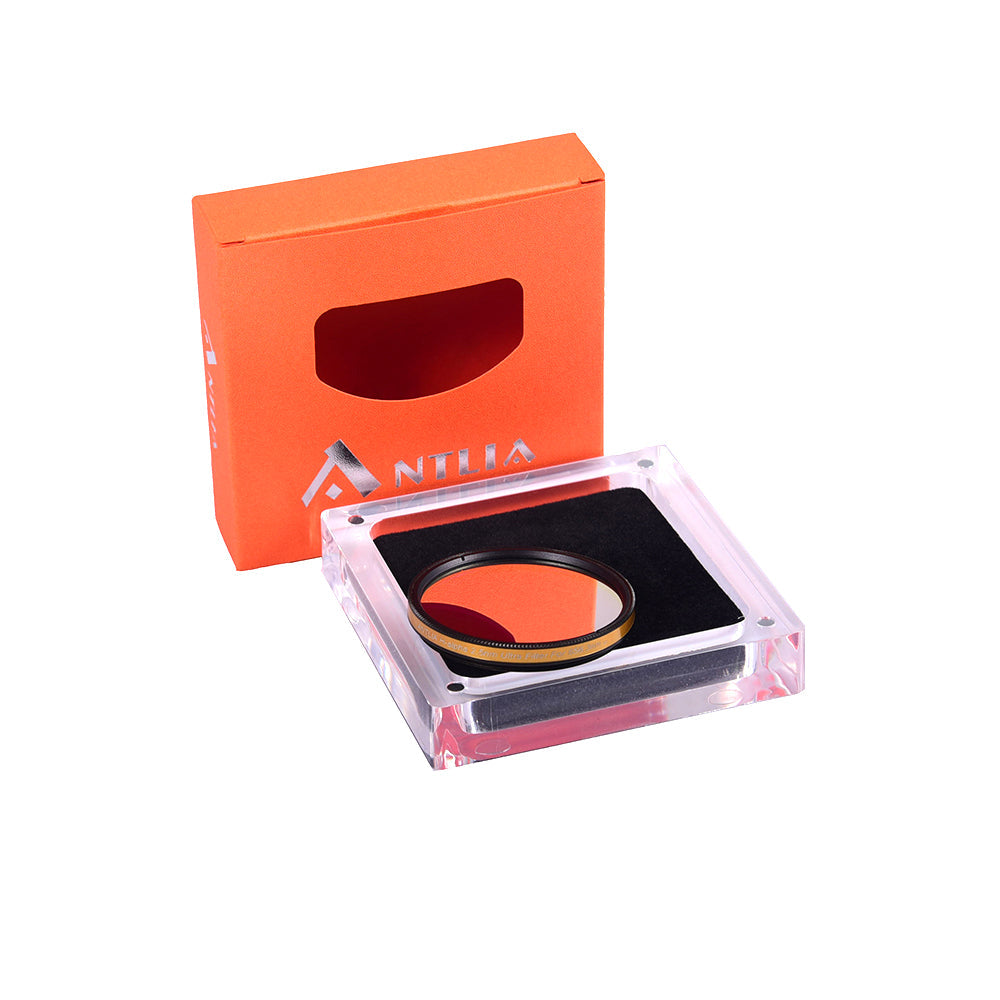

Antlia 2.5nm SII Ultra Filters Set - 2'' Mounted

Name: Antlia 2.5nm SII Ultra Filters Set - 2'' Mounted
Brand: ANTLIA
Price: 590.00 USD
Availability: InStock

$590.00 USD

~~$590.00 USD~~ $590.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Antlia H-a, SII and OIII 2.5nm Ultra Filter - Extra Narrowband filters 2" mounted

The Antlia SHO 2.5nm Ultra series filters are made with quartz glass and undergo precisely controlled coating processes to ensure optimal performance. The 2.5nm Ultra series is designed with a FWHM (full width half maximum) of 2.5nm +0.3/-0.1nm and a transmission efficiency >92-95% at the Central Wavelength.

The quartz glass possesses an ultralow thermal expansion coefficient with outstanding thermal and mechanical properties. When combined with advanced coating processes, these filters exhibit remarkable durability for imaging and research in the most challenging environmental conditions.

Compared with the 3nm Pro series, the 2.5nm Ultra series narrowband filters coated on quartz glass have higher transmittance for emission lines. Ha emission line at 656.3nm (â‰?5%), SII emission lines at 671.6nm/673.1nm (â‰?5%), and the OIII emission line at 500.7nm (â‰?2%). These filters are estimated to improve signal by 20-30% in your images. Additionally, the Ultra series boasts a narrower FWHM of 2.5nm+0.3/-0.1nm, resulting in an exceptionally high Signal to Noise Ratio for deep sky photography.

Technical Specifications:

	Hydrogen-alpha	Sulfur-II	Oxygen III
CWL (Central Wavelength)	656.3nm	671.6nm/ 673.1nm	500.7nm
Peak Transmission	656.3nm line â‰?/strong>95%	671.6nm/ 673.1nm line â‰?/strong>95%	500.7nm â‰?/strong>92%
Blocking	≥OD5
Filter Thickness	2mm+/-0.05mm

Sizes and MAP Pricesï¼?/span>

Size	Minimum Advertised Pricing (MAP)
Mounted: 2’â€?/span>	US$590 / pcs. US$1770 / SHO 2.5nm Ultra filters set
Unmounted：Â?6mm	US$465 / pcs. US$1395 / SHO 2.5nm Ultra filters set

The main features and application:

- High transmittance （Ha/SIIâ‰?/span>95%，OIIIâ‰?/span>92%）and the narrow FWHM 2.5nm +0.3/-0.1nm to maximize contrast;

- Flat-top spectrum minimizes the loss in transmission due to the Center Wavelength (CWL)-shift;

- Out of band blocking specification is designed to OD5 (0.001%) to block interference from other wavelengths and minimize halos around bright stars;

- Made of quartz glass, excellent durability and thermal stability, better fracture resistance and scratch resistance, improved coating resilience to cleaning;

- Filters are resistant to scratchesï¼?/span>

- Identical filter thickness to existing standards and double-sided fine polishing , with utmost care for parfocality;

- The SHO 2.5nm Ultra filters are recommended for use in optics with a Focus Ratio of ≥ f/3.5 for best optical performance;

- 100% of production are scanned individually, all transmission and blocking (OD) data in the box are actual, measured spectra and transmissionï¼?/span>

- All Antlia filters are coated to the edge of the substrate and unmounted narrowband filters are edge blackened to eliminate internal reflections from stray lightï¼?/span>

- Warranty: 3-years against delamination.

Spectrum Curves:

Ha 2.5nm ultra.jpg OIII 2.5nm ultra.jpg SII 2.5nm ultra.jpg
